Methods for colour matching/colour grading

Author
Date
Author
Time
Post link
I want to replace the shots that are worst affected by DVNR smearing with captures from the pre-THX laserdisc. The trouble is, the old laserdisc versions appear very "green". For example:

http://img.photobucket.com/albums/v670/Moth3r/grading/2.jpg

My aim is to use the newer THX colouring (on the DC/Face LD and GOUT DVD) as a reference to automatically correct the pre-THX colours. Here is the same shot from the GOUT DVD:

http://img.photobucket.com/albums/v670/Moth3r/grading/1.jpg

Previous threads discussing colour matching:
Here Laserman posted a scientific paper describing a method of automatic colur grading using N-dimensional probability density function transfer. As far as I know this has not been implemented into anything useful yet, and the mathematics behind the method is a little over my head.
Here superrune described a method of correcting the 2004 DVD version by combining the luma information from the 2004 DVD with the chroma information from the GOUT DVD. The drawback with this method that the two sources need to be lined up in every shot, which involves quite a lot of manual work.

Near the end of the second thread, someone mentioned the AviSynth filter ColourLike. This is effectively a 1D PDF transfer, as described in the paper linked in the first thread, carried out separately on each channel. (I confirmed this by following that method, and obtained results almost identical to ColourLike). The results look like this:

http://img.photobucket.com/albums/v670/Moth3r/grading/3.jpg

A bit grainy and washed out, although apparently better results can be achieved using RGB colourspace instead of YUV (would prefer to stick with YUV, though).

Here's my attempt using a similar "semi-automatic" method, but approximating the lookup values to a smooth curve to reduce the graininess of the image. The colours aren't as accurate, though:

http://img.photobucket.com/albums/v670/Moth3r/grading/4.jpg

Anyone know of any other methods that could be implemented into AviSynth?

Guidelines for post content and general behaviour: read announcement here

Max. allowable image sizes in signatures: reminder here

Author
Time
 (Edited)
Post link
This is something I've been looking at for my '97 SE project, I found the same problems with colourlike i.e. the grainy result, and like you realised I would need to approximate values for a smooth curve.

another way to improve the results (you may already be doing this but I know some people don't) is making sure your two sample histograms are taken from exactly the same frames from each source.

I tried to implement the method from the paper Laserman mentioned by rotating the colourspace in avisynth and using repeated iterations of colourlike, but this resulted in further problems because the rotations had to be normalized to 255 which lead to further graininess when it was rotated back. (am I making any sense?)

In the end I decided the only way I would get suitable results was to write a new Avisynth pluggin based on the paper Laserman mentioned and using a method similar to colourlike but smoothing out the target histogram and including several random colour-space rotations within the pluggin. Basically you'll never get a really good result without considering multiple colour-spaces as there is a problem with crosstalk between the colour channels (which is something the author of colourlike was willing to admit)

Therefore I am currently learning C++ (I have previous programming experience but not in anything C based) hopefully I'll have something useful in a couple of weeks.

However, considering the limitations of colourlike your results are already quite good.
Author
Time
Post link

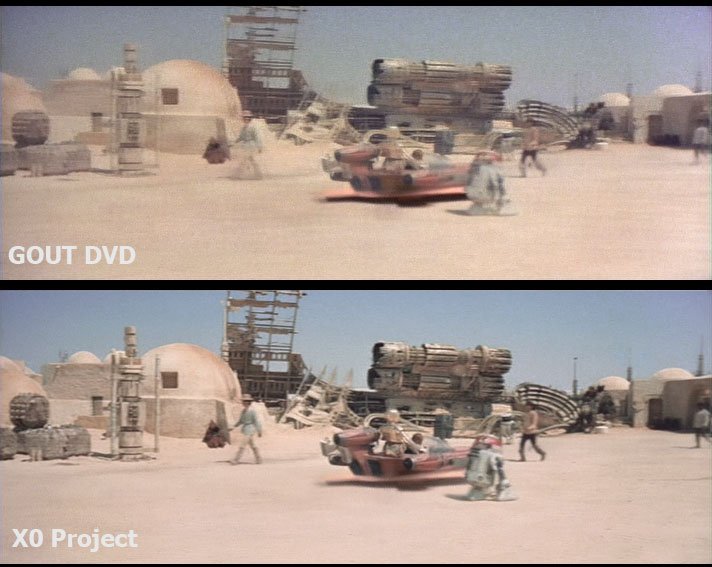

Yes the last image is not too bad, but I'd like to see a bluer sky and a more vibrantly red speeder, similar to the X0 project's results inthis thread.

Eagerly awaiting your AviSynth plugin...

Guidelines for post content and general behaviour: read announcement here

Max. allowable image sizes in signatures: reminder here

Author
Time
Post link

Sorry but can anybody give me a link to the colourlike filter ?

The link in the doom9 thread does not work :(

Author
Time
 (Edited)
Post link

Anyone tried PureImage?

I'm wondering if its "advanced matching and optimizing algorithm" is an implementation of the n-dimensional pdf transfer method.

Also, if it has a batch mode that could be used on a still image sequence created fro a piece of video.

http://www.mediachance.com/pureimage/colormatch2big.jpg

Guidelines for post content and general behaviour: read announcement here

Max. allowable image sizes in signatures: reminder here

Author
Time
Post link

It would be interesting to plug the lost scenes of Luke and Biggs into that program.

Author
Time
Post link

So, anyone gonna plug that into Luke & Biggs' scene?

A Goon in a Gaggle of 'em

Author
Time
Post link

ok, got the pureimage program, lots of fun to play with, and very quick..

but you still need to tweak parameters...but it does a lot of work for you..

doing one image at a time, could work, if you use the same reference images

per scene.... not sure if you could automate it though..

http://img402.imageshack.us/img402/8155/pure001testskh8.jpg

later

-1

[no GOUT in CED?-> GOUT CED]

Author
Time
Post link

I was just having a look at the autodesk combustion page and they mentioned that one of the things they say it can do is quote: "Precise and automatic color matching of footage from different sources".  This might be the sort of thing that you're after Moth3r.  Has anyone looked into this s/w or used it before and can comment?

If television is chewing gum for the mind, then the prequels are the worlds first visual laxative.

Author
Time
 (Edited)
Post link



I decided to try out the demo for the PureImage program and I must say I am very impressed with the results. It's pretty accurate. Not sure how it could be applied for video, I tried a couple ideas but it didn't work out.

It would be great if this could be used somehow. I know color correcting manually on my project continually makes me want to pull my hair out.

Anyone have any suggestions on what source in terms of color would be best to test out besides the GOUT?



Here's a couple random frames using the GOUT as reference (Top is SE, Middle is GOUT, Bottom is Adjusted):

And here's a short clip by recoloring and saving each frame then converting the sequence to avi (which is very time consuming).

http://www.sendspace.com/file/fj56gu




Author
Time
Post link

The PureImage screenshots and clip look pretty good to me  (although clip is too fast at 29.97fps!) It would be useful to have the original from the GOUT disc to compare.

I know that MeBeJedi used Combustion for some of the X0 Project cleanup work; it sounds like it might be worth taking a look at it's colour matching capabilities.

Guidelines for post content and general behaviour: read announcement here

Max. allowable image sizes in signatures: reminder here

Author
Time
Post link

Okay, edited in the GOUT images to previous post. Middle image is the GOUT. Although I didn't do it for the images above, a levels adustment also helps the color matched images since they can be a bit washed out.

Sorry about the framerate on the clip.


Author
Time
Post link

Thanks for that. I'm liking the results; the horrible blue tint is gone but the better detail is retained (for example, look at the tuft of Taun-taun hair in the centre of the first frame, compare the GOUT with the corrected 2004 DVD.)

The corrected version of the second frame has a slight hint of yellow at the base entrance which probably shouldn't be there, but this is only a minor quibble.

Agree with you on the levels adjustment; the GOUT video is generally washed-out and desaturated.

I wonder how an application of this method to a HD source would compare with the manual correction that Ady did for his AVCHD version?

And it's a shame there's no batch mode that could be applied to an image sequence.

Guidelines for post content and general behaviour: read announcement here

Max. allowable image sizes in signatures: reminder here

Author
Time
 (Edited)
Post link

I found a somewhat faster way of applying this to a sequence of images so I've been experimenting with this quite a bit. Here's a couple more clips:

Han-Rebel Base

http://www.sendspace.com/file/781nbm

Luke/Taun-Taun

http://www.sendspace.com/file/jie7is

I don't think it's perfect but it's definitely the closest color matcher I've seen so far. Not all the shots I've tried so far have come out great but I think's that due more to the gout quality. For example, spaces scenes don't come out well at all and the snow scenes aren't that great either or are inconsistent.


Author
Time
Post link

It would be interesting to see this process applied to the very first pic that Moth3r posted of the pre-THX LD.

If television is chewing gum for the mind, then the prequels are the worlds first visual laxative.

Author
Time
Post link

Yeah, I had a go on Moth3rs shots as well and I totally agree with you.  Didn't work unfortunately :(

If television is chewing gum for the mind, then the prequels are the worlds first visual laxative.

Author
Time
 (Edited)
Post link

I tried restoring a scan of a 70mm film cel of return of the jedi using that PureImage demo.  i used the a frame from the gout as the color source.   Ended up looking like shit because of the quality of the scan, the guy who did those reference photos probably used a platbed scanner.

Vader did not end up looking too bad but Jejerrods image was, bad is an understatement.

Also i thought while watching the gout of jedi that the image had good colors and was sharper than i ever seen it, then i noticed the detail levels on the blacks being noticeably bad because of dvnr they looked washed out and almost grey.

Now not sure if this was the software i was using to playback the movie, nero showtime.

“Always loved Vader’s wordless self sacrifice. Another shitty, clueless, revision like Greedo and young Anakin’s ghost. What a fucking shame.” -Simon Pegg.

Author
Time
Post link

Sorry for bumping this old thread but did you ever get anywhere with this, Moth3r? I'm so sick and tired of the Gout smearing!

Also do someone know if this picture is fake or real? it looks too good to be true actually. But if that is real that is some major achievement!

We want you to be aware that we have no plans—now or in the future—to restore the earlier versions.

Sincerely, Lynne Hale publicity@lucasfilm.com

Author
Time
Post link

msycamore said:

Sorry for bumping this old thread but did you ever get anywhere with this, Moth3r?

No; I'm still eagerly awaiting Max_Rebo's AviSynth filter!

Also do someone know if this picture is fake or real? it looks too good to be true actually. But if that is real that is some major achievement!

It's a real picture, but I guess we'll never know whether it came from a real video or not. Zion alluded to the fact it was from a clean up of the JSC LD, but his promised article never appeared and x0project.com is now gone.
