Needing help muxing subtitles into the DVD5 DE's

Author
Time
 (Edited)

I would like to be able to make a DVD5 set of the Despecialized Editions that has subtitles accessible by the remote.

I already understand that there will be no menus with this version and I’m fine with that.

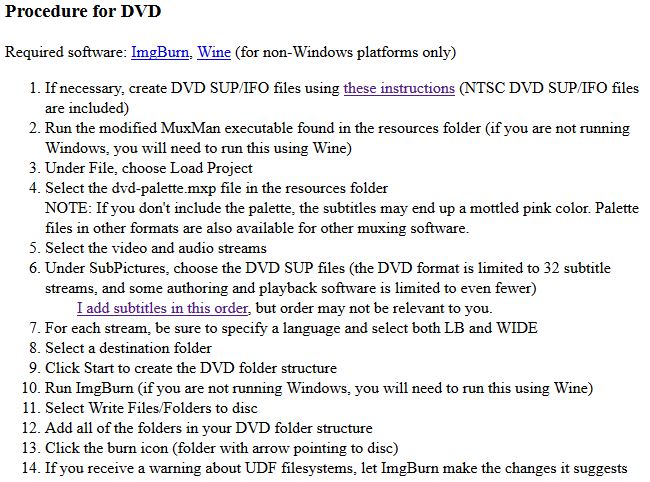

If I am understanding the term correctly, to achieve this, I need to “mux” a chosen subtitle stream into the finished VIDEO_TS folder, then burn the “remuxed” project to DVD, all using the instructions in the Project Threepio README file as seen below.

But I’m getting confused with step 5. Using the […] button on the right hand side of MuxMan doesn’t seem to find any of the video files in the VIDEO_TS folder. And I’m not sure what to look for with the audio stream.

Plus once I have selected the proper files for video, do I need to do anything with the aspect ratio settings in the 2 “Pref” drop-down menus? Same question goes for the “Language”, “Extension”, and “Delay” drop-down menus in the Audio section?

Thanks for the help!

The NJVC Custom Bluray Set of Harmy’s Despecialized Editions is up on Mega.

Go to this thread

Author
Time
 (Edited)

solkap said:

I would like to be able to make a DVD5 set of the Despecialized Editions that has subtitles accessible by the remote.

I already understand that there will be no menus with this version and I’m fine with that.

If I am understanding the term correctly, to achieve this, I need to “mux” a chosen subtitle stream into the finished VIDEO_TS folder, then burn the “remuxed” project to DVD, all using the instructions in the Project Threepio README file as seen below.

But I’m getting confused with step 5. Using the […] button on the right hand side of MuxMan doesn’t seem to find any of the video files in the VIDEO_TS folder. And I’m not sure what to look for with the audio stream.

Plus once I have selected the proper files for video, do I need to do anything with the aspect ratio settings in the 2 “Pref” drop-down menus? Same question goes for the “Language”, “Extension”, and “Delay” drop-down menus in the Audio section?

Thanks for the help!

Sorry for the delay in responding, I don’t browse very often down here and probably should.

MuxMan is looking for raw video and audio streams – i.e. *.m2v and *.ac3 files. An already-packaged DVD has these files already muxed into a series of VOB files.

So what you need to do is merge the VOB files into one giant VOB file (using something like VOBmerge) and then use a VOB extraction utility to extract the video and audio files. Once you’re dealing with the unpackaged raw streams, MuxMan repackages them (with the subtitles) into a new folder structure containing a different set of VOB files.

Keep in mind, subtitles in the DVD format are aliased and not quite as easy on the eyes as other formats.

Project Threepio (Star Wars OOT subtitles)

Author
Time

Thanks CatBus!

No worries about the delay, as attempting to get the DVDs with subtitles has always been tertiary to almost everything else at which I have already succeeded.

Now that I have a few more details, I’ll see how far that gets me!

Incidentally, if I follow the procedure above, will the chapter stops be preserved?

If not, after merging, extracting, and remuxing the new VOB files, is there a way to re-add the chapter stops?

Possibly similarly to the way mkvtoolnix can edit chapter stops on MKVs?

Thank you again!

The NJVC Custom Bluray Set of Harmy’s Despecialized Editions is up on Mega.

Go to this thread

Author
Time
 (Edited)

There are chapter stop extraction utilities that should pull the stops from an existing DVD structure. Whether that will do it in a muxman-compatible format is unknown, but usually they offer some conversion options. Those are not stored in the VOB files, but in the IFO files (I don’t know where, actually, I haven’t messed with DVD’s in a while). Once you have that, there’s a menu option in Muxman to import chapter stops from that export file and then it should just work.

If you have trouble with this, I have GOUT-timed DVD chapter stops in muxman format for the whole trilogy. However, they may not match what’s on the existing DVD5. They’re more-or-less the Blu-ray stops with stops for missing scenes removed. And they are a straight conversion from Blu-ray timecodes, so they might jump to less-than-ideal frames on a telecined DVD (or if my math was bad). If you’re interested, just PM me and I’ll upload them.

Project Threepio (Star Wars OOT subtitles)

Author
Time
 (Edited)

It just occurred to me how dumb it was to offer to upload chapter stops when they are text that could be posted in a forum. So here goes–copy these and paste them into TXT files and you’ll get muxman-compatible GOUT chapter stops.

Star Wars

634
3435
8791
13451
16040
20430
27680
34761
41757
45321
49306
51917
57956
62116
65747
69688
74352
75837
79113
84537
88292
90567
92927
98028
102013
109144
114708
118469
125974
128980
134409
137874
142069
148389
152040
157260
164211
169360
171961
174670
177886
183652
192052
202123
206572
207817
210982

The Empire Strikes Back

629
3449
7666
14920
18193
23055
27087
29398
32923
35245
38180
42842
46183
52744
56351
60213
64333
66013
69065
72742
79440
82709
90044
93689
96742
102742
108668
113751
117256
121690
131037
136703
139853
141878
147545
152426
156174
160894
168416
175268
178788
181190
184960
190674
194700
202496
206283
212635
216550

Return of the Jedi

632
3457
9021
14716
22261
25056
30796
39011
44351
52416
55292
66486
69731
80071
85641
91408
94893
96468
100968
104223
111348
117873
120518
128113
135068
139318
146998
153463
154818
156588
160593
166418
172483
179191
182726
186461
188232
194091
197636
199326
204721
205661
207131
210207
213626
217961
223107
224201
227436

Project Threepio (Star Wars OOT subtitles)

Author
Time

Awesome! Thank you!
